| Introduction |
| |
| |
| Tourmaline Studio simplifies integration of RFID- and Smartcard Reader so that you can rapidly develop- and execute test procedures and extended Smartcard OS life cycle management tasks. |
| |
| Combined with a graphical programming syntax that streamlines development time, Tourmaline Studio is the choice to tackle complex Smartcard OS operations and is -in combination with the IMASYS PPI 234 CM- particularly suitable for high-volume production environments. |
| |
 |
| |
| |
| Key Features |
| |
| |
| Support of multiple RFID- and Smartcard readers |
| |
 |
Native: Deciphe It URM – USB HF Reader Module |
| |
|
|
Native: Baltech eID Engine |
| |
(Native: others can be integrated on request) |
| |
|
|
PC/SC: Any RFID- or Smartcard reader with PC/SC driver |
| |
|
|
| |

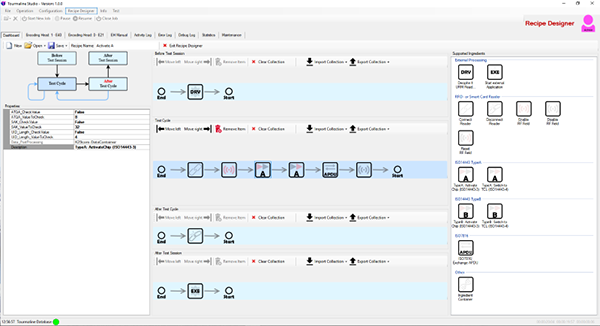

| Recipe Designer: Program and configure your test application graphically |
| |
 |
| |
| |

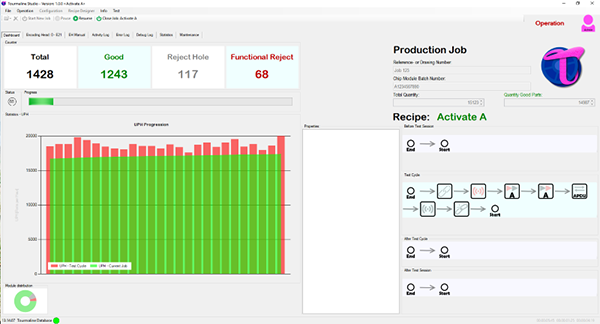

| Clear Dashboard to keep track of your production progress |
| |
 |
| |
| |

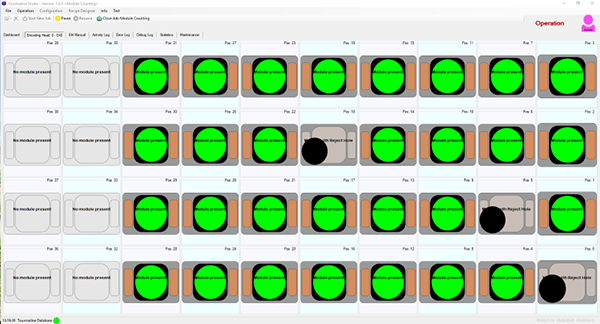

| Graphic representation of test result |
| |
 |
| |
| |
| Integrated Database to keep Chip Serial Number and relevant Production data |
| |

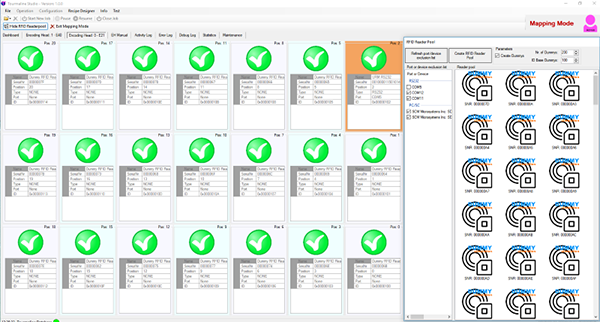

| Mapping Mode: Easy Tourmaline Studio configuration via Drag & Drop |
| |
 |
| |
| |
| Build-In Test Procedures |
| |
|
ISO14443-3 TypeA: Verification of ATQA, SAK and UID Length Values |
| |
|
|
ISO14443-3 TypeB: Verification of Application Data and Protocol Info |
| |
|
|
ISO14443-4: Verification of ATR- and ATR Length Values |
| |
|
|
ISO7816: Verification of Status word and RAPDU Values |
| |
|
|
Verification by external application possible |
| |
|
|
| |
| System Requirement |
| |
|
Processor: Intel® Core™ i5 (or equivalent) or higher (32-bit or 64bit) |
| |
|
|
RAM: 4 GB |
| |
|
|
Screen Resolution: 1024 x 786, (1920 x 1080 recommended) |
| |
|
|
Hard disk: 10 GB free space |
| |
|
|
Windows 7 or later (32-bit or 64-bit), (Windows 10 Professional 64-bit recommended) |
| |
|
|
Windows Server 2008 R2 SP1 or later |
| |
|
|
Microsoft® .NET Framework 4.5 or later |
| |
|
|
Microsoft® SQL Server 2014 Express or later |
| |
|
|
| |
| |
| |
